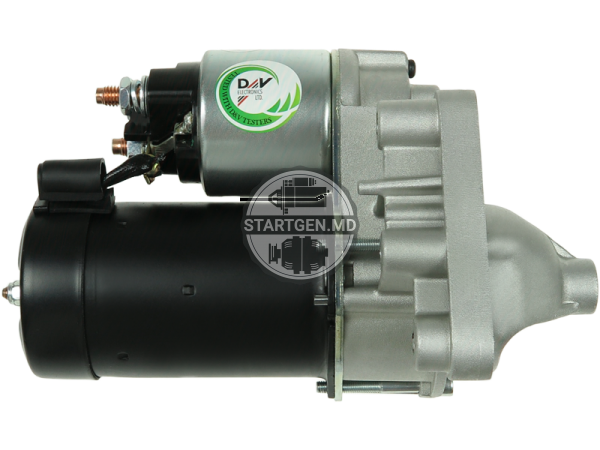

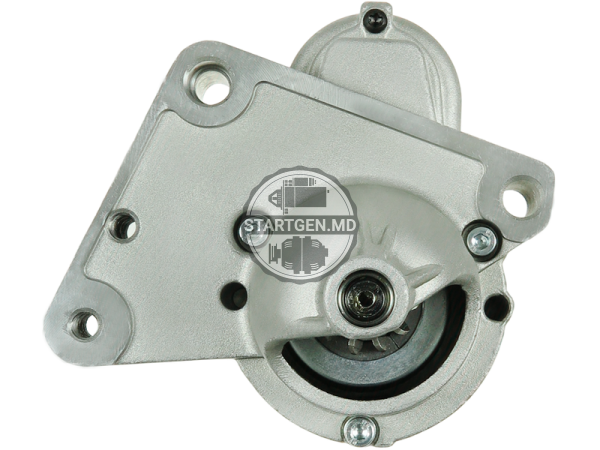

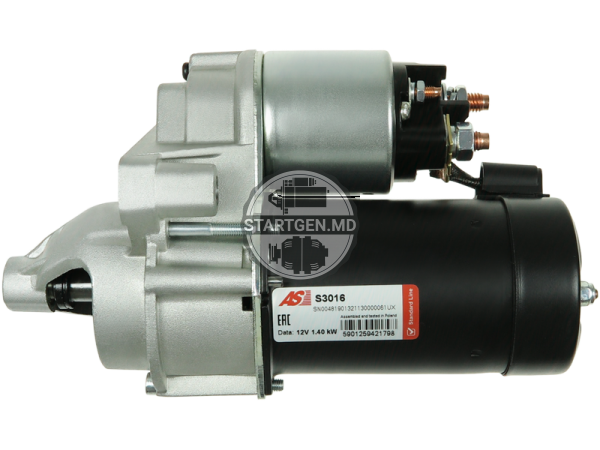

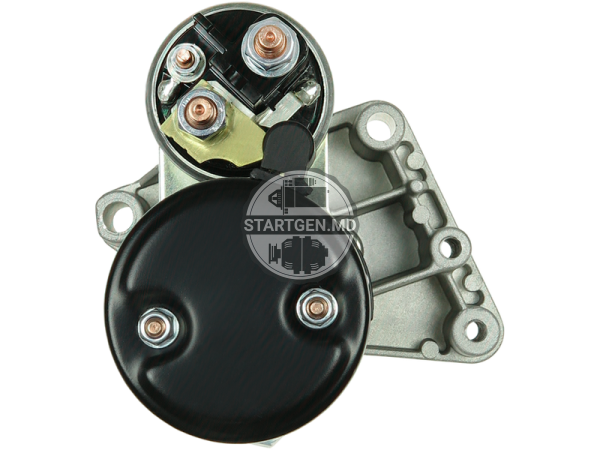

S3016 (AS)

Стартеры
напряжение [ V ] 12
Мощность [ kW ] 1.40
Вращение пускателя CW
Размер B [ mm ] 14.00
Количество зубьев [ qty. ] 11
Количество зубьев (вписывается в) [ qty. ] 11.12
Число отверстий в головке [ qty. ] 4
Число резьбовых отверстий [ qty. ] 2

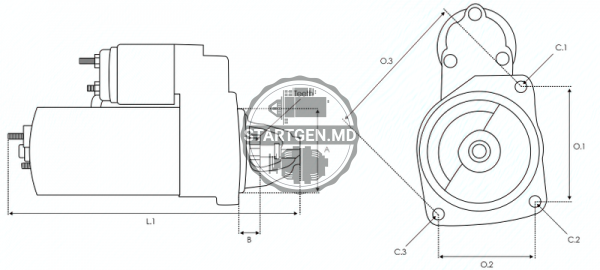

L.1 [ mm ] 213.00
O.1 [ mm ] 124.50
O.2 [ mm ] 29.00
O.3 [ mm ] 46.50
O.4 [ mm ] 89.50
C.1 [ mm ] 10.00
C.2 [ mm ] M8x1.25
C.3 [ mm ] M8x1.25
C.4 [ mm ] 9.50
Артикул: S3016 Категория:

Описание

Применяется для авто / Aplică pentru mașini

Марка Модель тип Год Примечания
CITROEN Berlingo 1.5 BlueHDi 100 06.2018-
CITROEN Berlingo 1.5 BlueHDi 130 03.2018-
CITROEN Berlingo 1.5 BlueHDi 75 06.2018-
CITROEN Berlingo 1.6 BlueHDi 100 [BHY(DV6FD)] 12.2014-
CITROEN Berlingo 1.6 BlueHDi 75 [9HN(DV6ETED)] 04.2015-
CITROEN Berlingo 1.6 BlueHDi 75 [BHW(DV6FE)] 04.2015-
CITROEN Berlingo 1.6 HDi [9HN(DV6ETED4)] 04.2008-
CITROEN Berlingo 1.6 HDi [9HT(DV6BTED4)] 04.2008-
CITROEN Berlingo 1.6 HDi [9HT(DV6BUTED4)] 04.2008-
CITROEN Berlingo 1.6 HDi [9HW(DV6BTED4)] 07.2005-
CITROEN Berlingo 1.6 HDi [9HX(DV6ATED4)] 07.2005-
CITROEN Berlingo 1.6 HDi [DV6B] 07.2005-
CITROEN Berlingo 1.6 HDi 4×4 [9HF(DV6DTED)] 02.2012-
CITROEN Berlingo 1.6 HDi 90 [9HF(DV6DTED)] 07.2010-
CITROEN Berlingo 1.6 HDi 90 [9HP(DV6DTED)] 07.2010-
CITROEN Berlingo 1.6 HDi 90 [9HX(DV6ATED4)] 07.2010-
CITROEN Berlingo 1.6 HDi 92 [9HJ(DV6DTEDM)] 07.2010-
CITROEN Berlingo Van 1.6 HDi 4×4 [9HN(DV6ETED)] 02.2012-
CITROEN C-Elysee 1.5 BlueHDi 100 05.2018-
CITROEN C-Elysee 1.6 HDi [9HJ(DV6DTEDM)] 11.2012-
CITROEN C-Elysee 1.6 HDi [9HP(DV6DTED)] 11.2012-
CITROEN C1 1.4 HDi [DV4D] 06.2005-
CITROEN C2 1.4 HDi [8HX(DV4TD)] 04.2009-
CITROEN C2 1.4 HDi [8HZ(DV4TD)] 09.2003-
CITROEN C3 1.4 HDi [8HX(DV4TD)] 02.2002-
CITROEN C3 1.4 HDi [8HX(DV4TD)] 04.2004-
CITROEN C3 1.4 HDi 16V [8HY(DV4TED4)] 02.2002-
CITROEN C3 1.5 BlueHDi 100 [YHY(DV5RD)] 05.2018-
CITROEN C3 1.6 HDi [9HP(DV6DTED)] 11.2009-
CITROEN C3 1.6 HDi [9HX(DV6ATED4)] 10.2005-
CITROEN C3 1.6 HDi [9HX(DV6ATED4)] 11.2009-
CITROEN C3 1.6 HDi 115 [9HD(DV6C)] 09.2012-
CITROEN C3 1.6 HDi 16V [9HX(DV6ATED4)] 10.2005-
CITROEN C3 1.6 HDi 16V [9HZ(DV6TED4)] 09.2005-
CITROEN C3 1.6 HDi BlueHDi 110 [BHY(DV6FD)] 07.2016-
CITROEN C3 1.6 HDi BlueHDi 75 [BHW(DV6FE)] 07.2016-
CITROEN C3 1.6 HDi Picasso [9HP(DV6DTED)] 07.2010-
CITROEN C4 1.6 BlueHDi 100 [BHY(DV6FD)] 07.2014-
CITROEN C4 1.6 HDi [9HP(DV6DTED)] 11.2009-
CITROEN C4 1.6 HDi [9HR(DV6C)] 11.2009-
CITROEN C4 1.6 HDi [9HX(DV6ATED4)] 11.2004-
CITROEN C4 1.6 HDi [9HY(DV6ATED4)] 11.2004-
CITROEN C4 1.6 HDi [9HY(DV6TED4)] 11.2004-
CITROEN C4 1.6 HDi [9HY(DV6TED4)] 07.2006-
CITROEN C4 1.6 HDi [9HZ(DV6ATED4)] 11.2004-
CITROEN C4 1.6 HDi [9HZ(DV6TED4)] 11.2004-
CITROEN C4 1.6 HDi [9HZ(DV6TED4)] 07.2006-
CITROEN C4 1.6 HDi 115 [9HC(DV6C)] 09.2013-
CITROEN C4 1.6 HDi 115 [9HR(DV6C)] 07.2012-
CITROEN C4 1.6 HDi 115 [BHX(DV6FC)] 09.2013-
CITROEN C4 1.6 HDi 115 Picasso [9HC(DV6C)] 02.2013-
CITROEN C4 1.6 HDi 115 Picasso [BHX(DV6FC)] 02.2013-
CITROEN C4 1.6 HDi 90 [9HP(DV6DTED)] 09.2013-
CITROEN C4 1.6 HDi 90 Picasso [9HP(DV6DTED)] 02.2013-
CITROEN C4 1.6 HDi Picasso [9HY(DV6TED4)] 02.2007-
CITROEN C4 1.6 HDi Picasso [9HZ(DV6TED4)] 02.2007-
CITROEN C4 Cactus 1.6 BlueHDi 100 [BHY(DV6FD)] 09.2014-
CITROEN C4 Cactus 1.6 HDi 90 [9HP(DV6DTED)] 09.2014-
CITROEN C5 1.6 HDi [9HY(DV6TED4)] 09.2004-
CITROEN C5 1.6 HDi [9HZ(DV6TED4)] 09.2004-
CITROEN Dispatch 1.5 BlueHDi 100 06.2018-
CITROEN Dispatch 1.6 HDi BlueHDi 115 [BHX(DV6FCU)] 04.2016-
CITROEN Dispatch 1.6 HDi BlueHDi 95 [BHS(DV6FDU)] 04.2016-
CITROEN Dispatch 1.6 HDi BlueHDi 95 [BHV(DV6FDU)] 04.2016-
CITROEN DS3 1.4 HDi 70 [8HR(DV4C)] 04.2010-
CITROEN DS3 1.6 HDi 90 [9HP(DV6DTED)] 01.2013-
CITROEN DS4 1.6 HDi 110 [9HR(DV6C)] 04.2011-
CITROEN DS4 1.6 HDi 110 [9HR] 04.2011-
CITROEN DS4 1.6 HDi 115 [9HL(DV6C)] 08.2012-
CITROEN Jumpy 1.6 BlueHDi 115 [BHX(DV6FCU)] 04.2016-
CITROEN Jumpy 1.6 BlueHDi 95 [BHV(DV6FDU)] 04.2016-
CITROEN Jumpy 1.6 HDi [9HU(DV6UTED4)] 01.2007-
CITROEN Jumpy 1.6 HDi 90 [9HH(DV6DUM)] 01.2007-
CITROEN Jumpy 1.6 HDi 90 [9HM(DV6UC)] 01.2007-
CITROEN Jumpy 1.6 HDi BlueHDi 95 [BHS(DV6FDU)] 09.2016-
CITROEN Jumpy 1.6 HDi BlueHDi 95 [BHV(DV6FDU)] 09.2016-
CITROEN Nemo 1.4 HDi [8HS(DV4TD)] 02.2008-
CITROEN Nemo 1.4 HDi [8HS(DV4TED)] 04.2009-
CITROEN SpaceTourer 1.6 BlueHDi 115 [BHX(DV6FC)] 04.2016-
CITROEN SpaceTourer 1.6 BlueHDi 95 [BHV(DV6FDU)] 04.2016-
CITROEN SpaceTourer 2.0 BlueHDi 150 [AHX(DW10FD)] 04.2016-
CITROEN Xsara 1.4 HDi [8HX(DV4TD)] 01.2003-03.2005
CITROEN Xsara 1.4 HDi [8HX(DV4TD)] 01.2003-08.2005
CITROEN Xsara 1.6 HDi Picasso [9HX(DV6ATED4)] 09.2005-
CITROEN Xsara 1.6 HDi Picasso [9HY(DV6TED4)] 05.2004-
CITROEN Xsara 1.6 HDi Picasso [9HZ(DV6TED4)] 05.2004-
FIAT Scudo 1.6 Multijet [9H07(DV6UC)] 01.2007-
FIAT Scudo 1.6 Multijet [9H07(DV6UC)] 02.2011-
FIAT Scudo 1.6 Multijet [9HM(DV6UC)] 01.2007-
FIAT Scudo 1.6 Multijet [9HM(DV6UC)] 02.2011-
FIAT Scudo 1.6 Multijet [9HU] 01.2007-
PEUGEOT 1007 1.4 HDi [8HX(DV4TD)] 04.2005-
PEUGEOT 1007 1.4 HDi [8HZ(DV4TD)] 04.2005-
PEUGEOT 107 1.4 HDi [8HT(DV4TD)] 06.2005-
PEUGEOT 2008 1.4 HDi [8HR(DV4C)] 06.2013-
PEUGEOT 2008 1.6 HDi [9HP(DV6DTED)] 03.2013-
PEUGEOT 206 1.4 HDi [8HX(DV4TD)] 09.2001-03.2009
PEUGEOT 206 1.4 HDi [8HX(DV4TD)] 07.2002-
PEUGEOT 206 1.4 HDi [8HX(DV4TD)] 09.2002-02.2007
PEUGEOT 206 1.4 HDi [8HZ(DV4TD)] 09.2001-03.2009
PEUGEOT 206 1.4 HDi eco [8HX(DV4TD)] 09.2001-
PEUGEOT 206 1.4 HDi eco [8HZ(DV4TD)] 09.2001-
PEUGEOT 206 1.4 HDi eco 70 [8HZ(DV4TD)] 09.2008-
PEUGEOT 206 1.6 HDi [9HZ(DV6TED4)] 04.2005-
PEUGEOT 206 1.6 HDi FAP [9HY(DV6TED4)] 05.2004-
PEUGEOT 206 1.6 HDi FAP [9HZ(DV6TED4)] 05.2004-
PEUGEOT 207 1.4 HDi [8HR(DV4C)] 02.2006-
PEUGEOT 207 1.4 HDi [8HZ(DV4TD)] 02.2006-
PEUGEOT 207 1.4 HDi [8HZ(DV4TD)] 04.2007-
PEUGEOT 207 1.6 HDi [9HP(DV6DTED)] 11.2009-
PEUGEOT 207 1.6 HDi [9HV(DV6ATED4)] 02.2006-
PEUGEOT 207 1.6 HDi [9HV(DV6TED4)] 02.2006-
PEUGEOT 207 1.6 HDi [9HX(DV6ATED4)] 02.2006-
PEUGEOT 207 1.6 HDi [9HX(DV6ATED4)] 04.2007-
PEUGEOT 207 1.6 HDi [9HX(DV6ATED4)] 06.2007-
PEUGEOT 207 1.6 HDi [9HY(DV6TED4)] 02.2006-
PEUGEOT 207 1.6 HDi [9HZ(DV6TED4)] 02.2006-
PEUGEOT 207 1.6 HDi [9HZ(DV6TED4)] 02.2007-
PEUGEOT 208 1.4 HDi [8HP(DV4C)] 03.2012-
PEUGEOT 208 1.4 HDi [8HR(DV4C)] 03.2012-
PEUGEOT 208 1.4 HDi [8HR(DV4C)] 10.2012-
PEUGEOT 208 1.6 BlueHDi 75 [9HK(DV6ETEDM)] 01.2013-
PEUGEOT 208 1.6 BlueHDi 75 [BHW(DV6FE)] 01.2013-
PEUGEOT 208 1.6 HDi [9HP(DV6DTED)] 03.2012-
PEUGEOT 208 1.6 HDi [9HP(DV6DTED)] 03.2014-
PEUGEOT 301 1.5 D 05.2018-
PEUGEOT 301 1.6 HDi 92 [9HF(DV6DTED)] 11.2012-
PEUGEOT 307 1.4 HDi [8HX(DV4TD)] 10.2001-
PEUGEOT 307 1.4 HDi [8HZ(DV4TD)] 10.2001-
PEUGEOT 307 1.4 HDi [8HZ(DV4TD)] 03.2002-
PEUGEOT 307 1.6 HDi FAP [9HY(DV6TED4)] 02.2004-
PEUGEOT 307 1.6 HDi FAP [9HZ(DV6TED4)] 02.2004-
PEUGEOT 307 SW 1.4 HDi 70 [8HZ(DV4TD)] 03.2002-01.2005
PEUGEOT 308 1.5 BlueHDi 100 [YHY(DV5RD)] 05.2018-
PEUGEOT 308 1.6 HDi [9HC(DV6C)] 09.2013-
PEUGEOT 308 1.6 HDi [9HP(DV6DTED)] 11.2009-
PEUGEOT 308 1.6 HDi [9HZ(DV6ATED4)] 09.2007-
PEUGEOT 308 1.6 HDi [BHZ(DV6FC)] 09.2013-
PEUGEOT 308 SW 1.5 BlueHDi 100 [YHY(DV5RD)] 04.2018-
PEUGEOT 308 SW 1.6 HDi 03.2014-
PEUGEOT 308 SW 1.6 HDi [9HD(DV6C)] 03.2014-
PEUGEOT 380 SW 1.6 HDi [9HP(DV6DTED)] 11.2009-
PEUGEOT 407 1.6 HDi FAP [9HY(DV6TED4)] 05.2004-
PEUGEOT 407 1.6 HDi FAP [9HZ(DV6TED4)] 05.2004-
PEUGEOT 407 2.0 HDi 11.2004-10.2007
PEUGEOT 407 SW 2.0 HDi [RHL(DW10BTED4)] 11.2004-
PEUGEOT Bipper 1.4 HDi [8HS(DV4TD)] 02.2008-
PEUGEOT Bipper 1.4 HDi [8HS(DV4TD)] 04.2008-
PEUGEOT Expert 1.6 BlueHDi 115 [BHS(DV6FDU)] 04.2016-
PEUGEOT Expert 1.6 BlueHDi 115 [BHV(DV6FDU)] 04.2016-
PEUGEOT Expert 1.6 BlueHDi 115 [BHX(DV6FC)] 04.2016-
PEUGEOT Expert 1.6 BlueHDi 175 [BHX(DV6FCU)] 04.2016-
PEUGEOT Expert 1.6 BlueHDi 95 [BHV(DV6FDU)] 04.2016-
PEUGEOT Expert 1.6 HDi [9HU(DV6UTED4)] 01.2007-
PEUGEOT Expert 1.6 HDi 90 01.2007-
PEUGEOT Expert 1.6 HDi 90 [9HH(DV6DUM)] 01.2007-
PEUGEOT Expert 1.6 HDi 90 [9HM(DV6UC)] 01.2007-
PEUGEOT Expert 1.6 HDi BlueHDi 95 [BHV(DV6FDU)] 09.2016-
PEUGEOT Expert 1.6 HDi Tepee [9HH(DV6DUM)] 01.2007-
PEUGEOT Expert 1.6 HDi Tepee [9HM(DV6UC)] 01.2007-
PEUGEOT Expert 1.6 HDi Tepee [9HU(DV6UTED4)] 01.2007-
PEUGEOT Partner 1.6 BlueHDi 100 [BHY(DV6FD)] 04.2015-
PEUGEOT Partner 1.6 BlueHDi 120 [BHZ(DV6FC)] 04.2015-
PEUGEOT Partner 1.6 BlueHDi 75 [BHW(DV6FE)] 01.2015-
PEUGEOT Partner 1.6 BlueHDi Tepee [BHW(DV6FE)] 01.2015-
PEUGEOT Partner 1.6 BlueHDi Tepee [BHY(DV6FD)] 12.2014-
PEUGEOT Partner 1.6 BlueHDi Tepee [BHZ(DV6FC)] 12.2014-
PEUGEOT Partner 1.6 HDi [9HF(DV6DTED)] 03.2013-
PEUGEOT Partner 1.6 HDi [9HJ(DV6DTEDM)] 04.2010-
PEUGEOT Partner 1.6 HDi [9HP(DV6DTED)] 04.2010-
PEUGEOT Partner 1.6 HDi [9HS(DV6TED4BU)] 04.2008-
PEUGEOT Partner 1.6 HDi [9HT(DV6BTED4)] 04.2008-
PEUGEOT Partner 1.6 HDi [9HT(DV6BTED4)] 01.2009-
PEUGEOT Partner 1.6 HDi [9HW(DV6BTED4)] 02.2006-
PEUGEOT Partner 1.6 HDi [9HW(DV6BTED4)] 04.2008-
PEUGEOT Partner 1.6 HDi [9HX(DV6ATED4)] 02.2006-
PEUGEOT Partner 1.6 HDi [9HX(DV6ATED4)] 04.2008-
PEUGEOT Partner 1.6 HDi [9HX(DV6ATED4)] 01.2009-
PEUGEOT Partner 1.6 HDi [9HX(DV6ATED4)] 04.2010-
PEUGEOT Partner 1.6 HDi 75 [9HK(DV6ETEDM)] 08.2005-07.2008
PEUGEOT Partner 1.6 HDi BlueHDi 110 4×4 [BHY(DV6FD)] 04.2015-
PEUGEOT Partner 1.6 HDi Tepee [9HF(DV6DTED)] 03.2013-
PEUGEOT Partner 1.6 HDi Tepee [9HP(DV6DTED)] 04.2010-
PEUGEOT Partner 1.6 HDi Tepee [9HT(DV6BTED4)] 04.2008-
PEUGEOT Partner 1.6 HDi Tepee [9HV(DV6TED4)] 04.2008-
PEUGEOT Partner 1.6 HDi Tepee [9HW(DV6BTED4)] 04.2008-
PEUGEOT Partner 1.6 HDi Tepee [9HX(DV6ATED4)] 04.2008-
PEUGEOT Partner 1.6 HDi Tepee [9HX(DV6ATED4)] 04.2010-
PEUGEOT Rifter 1.5 BlueHDi 100 09.2018-
PEUGEOT Rifter 1.5 BlueHDi 130 09.2018-
PEUGEOT Traveller 1.6 BlueHDi 115 04.2016-
PEUGEOT Traveller 1.6 BlueHDi 95 04.2016-
TOYOTA Aygo 1.4 HDi [2WZTV] 07.2005-08.2010

Номера аналоги / Numere analogice

Справочный номер Режиссер
063721260010 MAGNETI MARELLI
0986021651 BOSCH
101260 KUHNER
101260M KUHNER
101260R KUHNER
101260V KUHNER
113254 CARGO
11908 EAI
20437742 REAL
20479801 REAL
220.519.114 PSH
220068 ERA
25-3070 ELSTOCK
28100-YV010 TOYOTA
28100-YV011 TOYOTA
3006 CEVAM
32570N WAI / TRANSPO
42455982 HERTH+BUSS
428000-1640 DENSO
438133 VALEO
455982 VALEO
5802AZ PEUGEOT
5802FG PEUGEOT
5802FH PEUGEOT
5802FP PEUGEOT
5802Y4 PEUGEOT
6.0054.9 IKA
6015108 SANDO
726062 VALEO
88212391 POWERMAX
8EA011610-181 HELLA
8EA738016-001 HELLA
943293541010 MAGNETI MARELLI
944280801790 MAGNETI MARELLI
944293541010 MAGNETI MARELLI
9640825280 PEUGEOT
9646679980 PEUGEOT
9664016980 PEUGEOT
9688268480 PEUGEOT
9688268580 PEUGEOT
968826858000 PEUGEOT
AEU1260 AUTOELECTRO
CGB-23903 AINDE
CS1260 HC PARTS
CST15108 CASCO
CST15108AS CASCO
CST15108ES CASCO
CST15108GS CASCO
CST15108OS CASCO
CST15108RS CASCO
D6RA110 VALEO
DRS3903 DELCO
DRS3903N DELCO
DS5013 DELCO
DS5013N DELCO
EAA-121001 EAA
GS438133-A GPARTS
GS438133V-R GPARTS
LRS01569 LUCAS
LRS1569 LUCAS
M000T93581 MITSUBISHI
M000T93582 MITSUBISHI
M0T93581 MITSUBISHI
M0T93582 MITSUBISHI
MAV171080 SIOM
MQS1260 MAGNETI MARELLI
MRS54101 MAGNETI MARELLI
MSR544 MAGNETI MARELLI
NEU1260 AUTOELECTRO
RAS34014 DELCO
RNLD6RA110 RNL
S3016 AS-PL
SG0414 GHIBAUDI
STM1260 KRAUF
STM926 ROLLCO
STR54045 WOODAUTO
STRL079 3EFFE
STV1260 KRAUF
TS14-62 VALEO
TS14E110 VALEO
UD14984S AS-PL
VAL438133 WOODAUTO



Детали

Бренд

Производитель

V

Похожие товары
